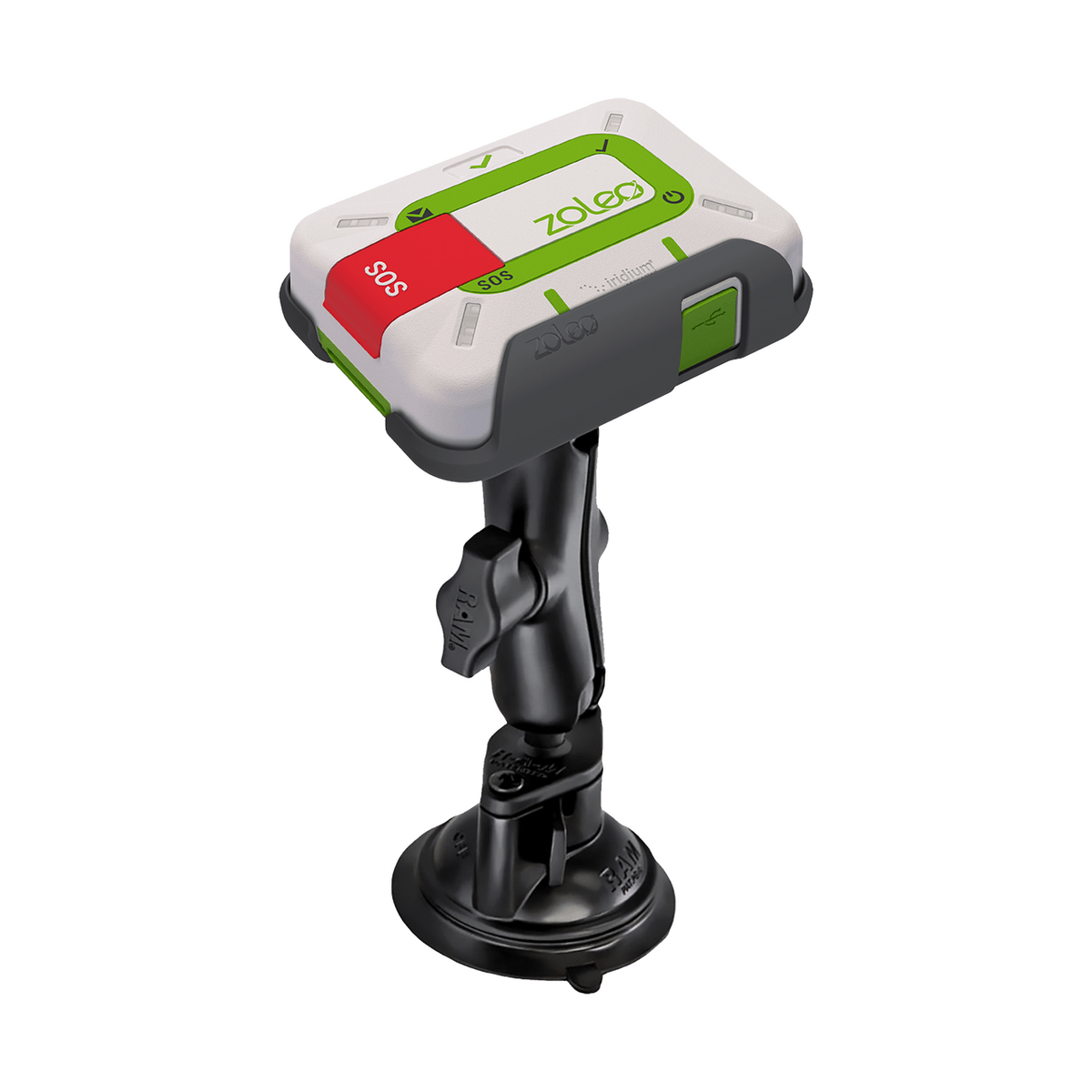

ZOLEO Universal Mount Kit


ZOLEO Universal Mount on white background
ZOLEO Universal Mount on white background
ZOLEO Universal Mount on white background
ZOLEO Universal Mount on white background
ZOLEO Universal Mount on white background
$75.00USD

SKU: ZOLEOMOUNT

Ideal for securing the ZOLEO satellite communicator on the windshield of a vehicle or vessel, the ZOLEO Universal Mount Kit secures the ZOLEO device in place and keeps it charged. This kit includes the a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces, and an adjustable arm. It also includes the complete ZOLEO Cradle Kit.

Includes:

  • USB car charger, for use with any 12-24 V power source
  • A RAM® Twist-Lock™ Suction Cup Mount with 1/4"-20 UNC threaded camera adapter
  • Double socket arm (adjustable to the desired look-angle)
  • Micro-USB cable, 1.2 m ( 3.9 ft)
  • ZOLEO Cradle Kit
  • Quick Start Guide
  •
Availability:

Additional Specs

RAM® Mount Components

RAM Twist-Lock Suction Cup Base with Ball
  • Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
  • Weight: 118 g (4.16 oz)
  • Ball: B Size 2.54 cm (1 in) rubber ball

RAM Double Socket Arm
  • Dimensions: 9.47 cm (3.73 in)
  • Weight: 140.6 g (4.96 oz)

RAM Ball Adapter with ¼"-20 Threaded Stud for Action Cameras
  • Dimension: 63.5 mm (2.5 in) in diameter
  • Weight: 72.57 g (2.56 oz)
  • Stud: ¼”-20 threaded steel stud
  • Ball: B Size 2.54 cm (1 in) rubber ball

DC Car Charger
  • Single USB port for use with the included USB to Micro-USB cable
  • Input Voltage: 12-24 V
  • Output Voltage: 5 V
  • Max Current (A): 2.5 A

USB Cable
  • 1.2 m (3.9 ft) (USB to Micro-USB)

ZOLEO Cradle Kit Components (included)

Main Cradle

Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.

  • Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
  • Weight: 3.0 g (0.10 oz)
  • Colour: Grey

Belt Clip Insert

Secures your ZOLEO device to be worn on a belt.

  • Weight: 2.0 g (0.07 oz)
  • Colour: Green

Strap Mount Insert

Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.

  • Fits straps up to: 25 mm (1 in)
  • Weight: 1.0 g (0.03 oz)
  • Colour: Green

Camera Mount Insert

Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.

  • Weight: 1.5 g (0.05 oz)
  • Thread Type: ¼"-20 UNC
  • Colour: Green
